General contracting · Case study

Site-Built Structural Box Beam

Lock Haven, PA · 2023

A structural "box beam" I built and set myself to carry the roof load across a wide opening. It's a deep, built-up beam — dimensional lumber framing sheathed in APA-rated structural plywood — fabricated on site to an engineered, code-approved design and set in place to carry the span.

Project photos

Select a photo to view the original in a new tab.

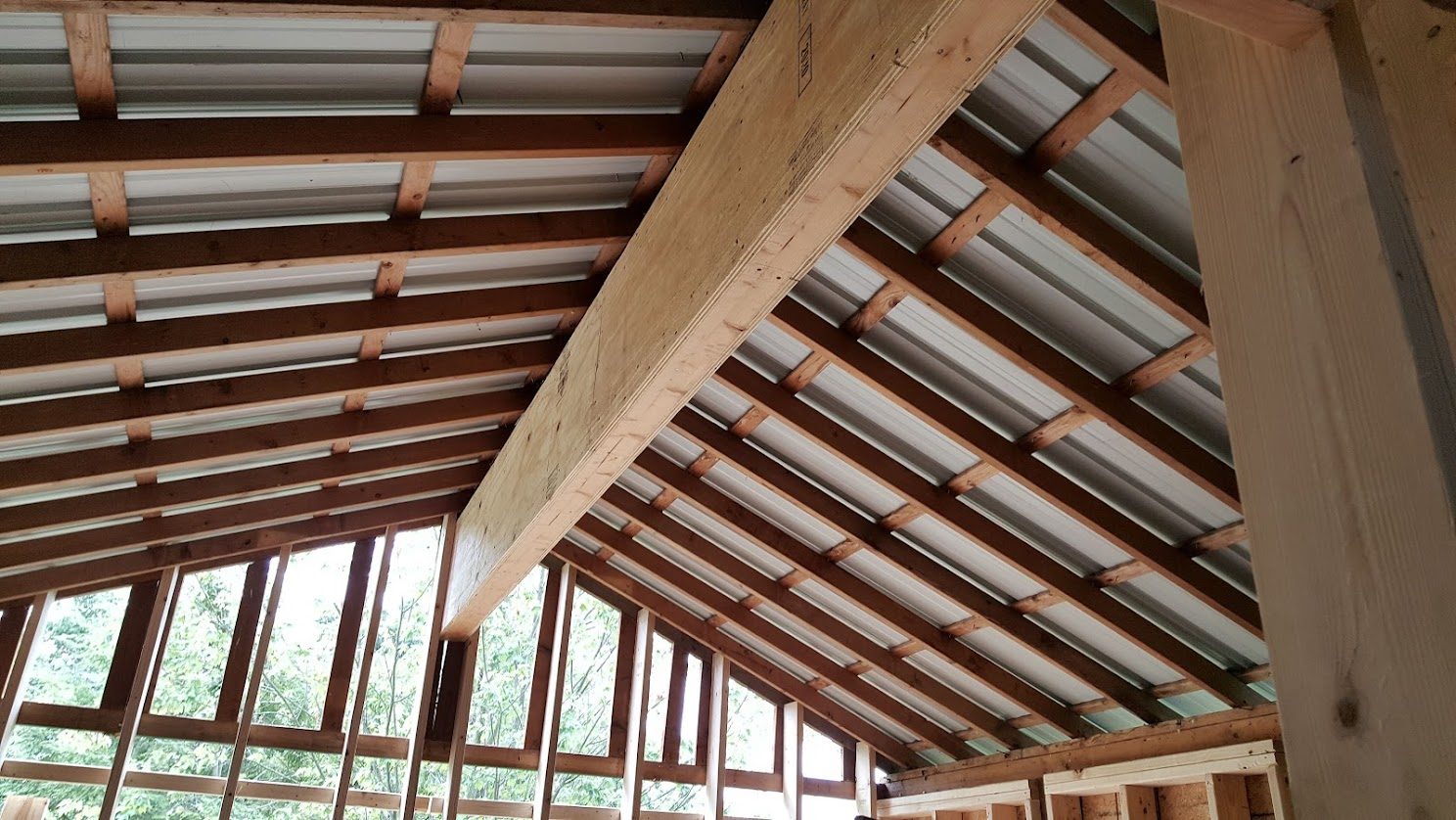

Site-built plywood box beam carrying the roof framing up to the ridge in a vaulted, metal-roofed structureView original photo ↗
Site-built plywood box beam carrying the roof framing up to the ridge in a vaulted, metal-roofed structure

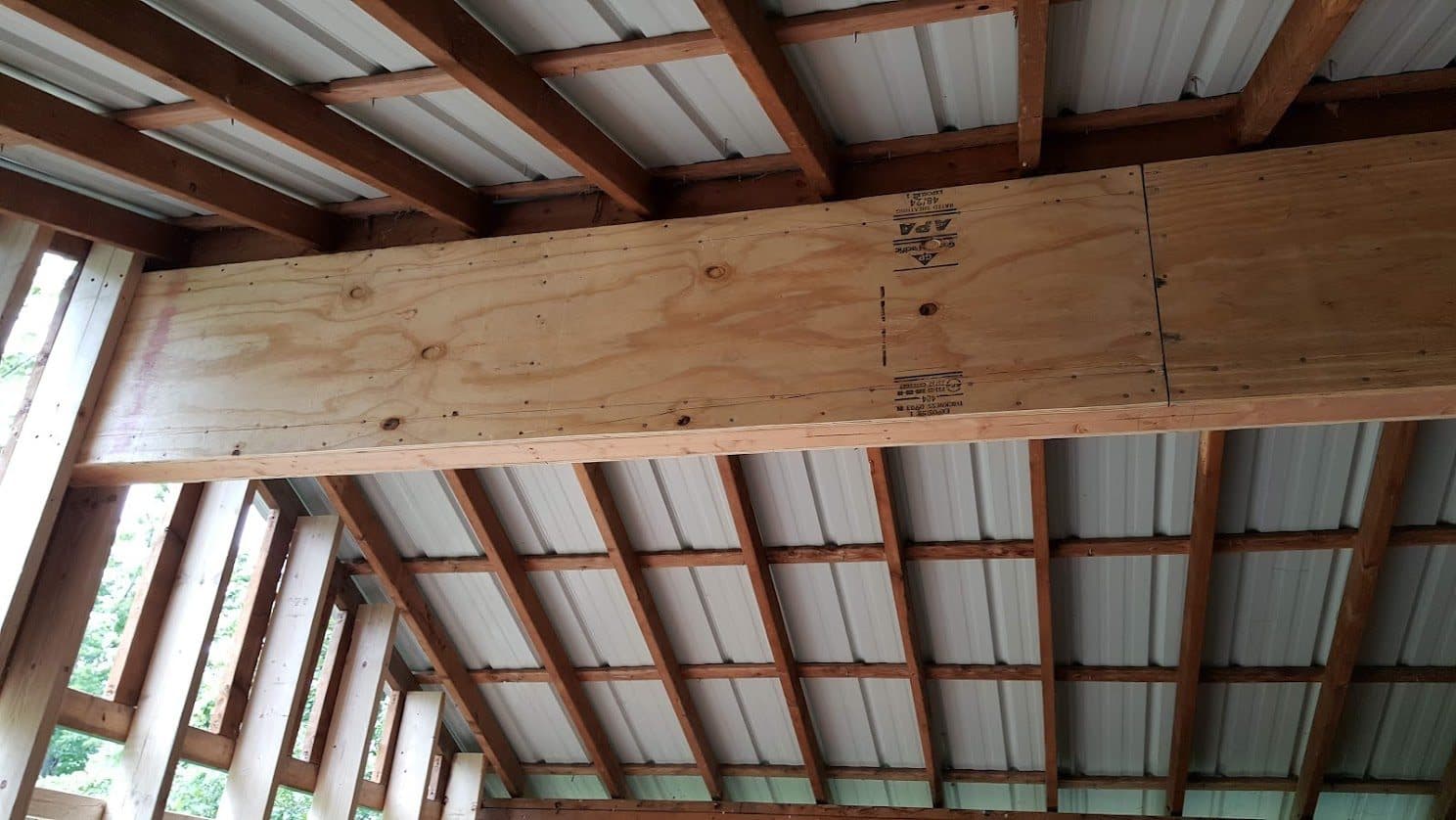

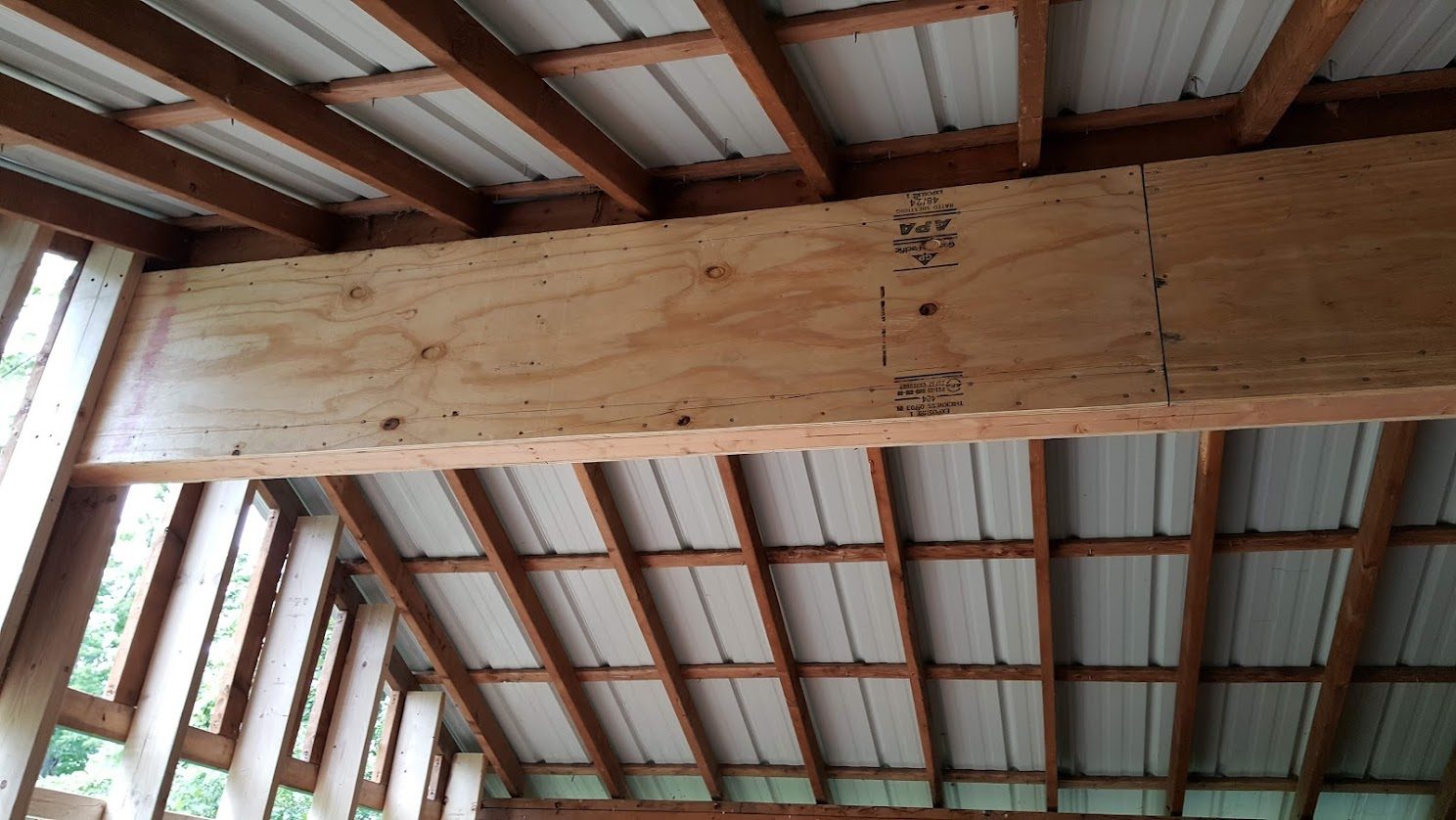

Underside of the APA-rated structural plywood box beam spanning beneath the metal roof framingView original photo ↗
Underside of the APA-rated structural plywood box beam spanning beneath the metal roof framing

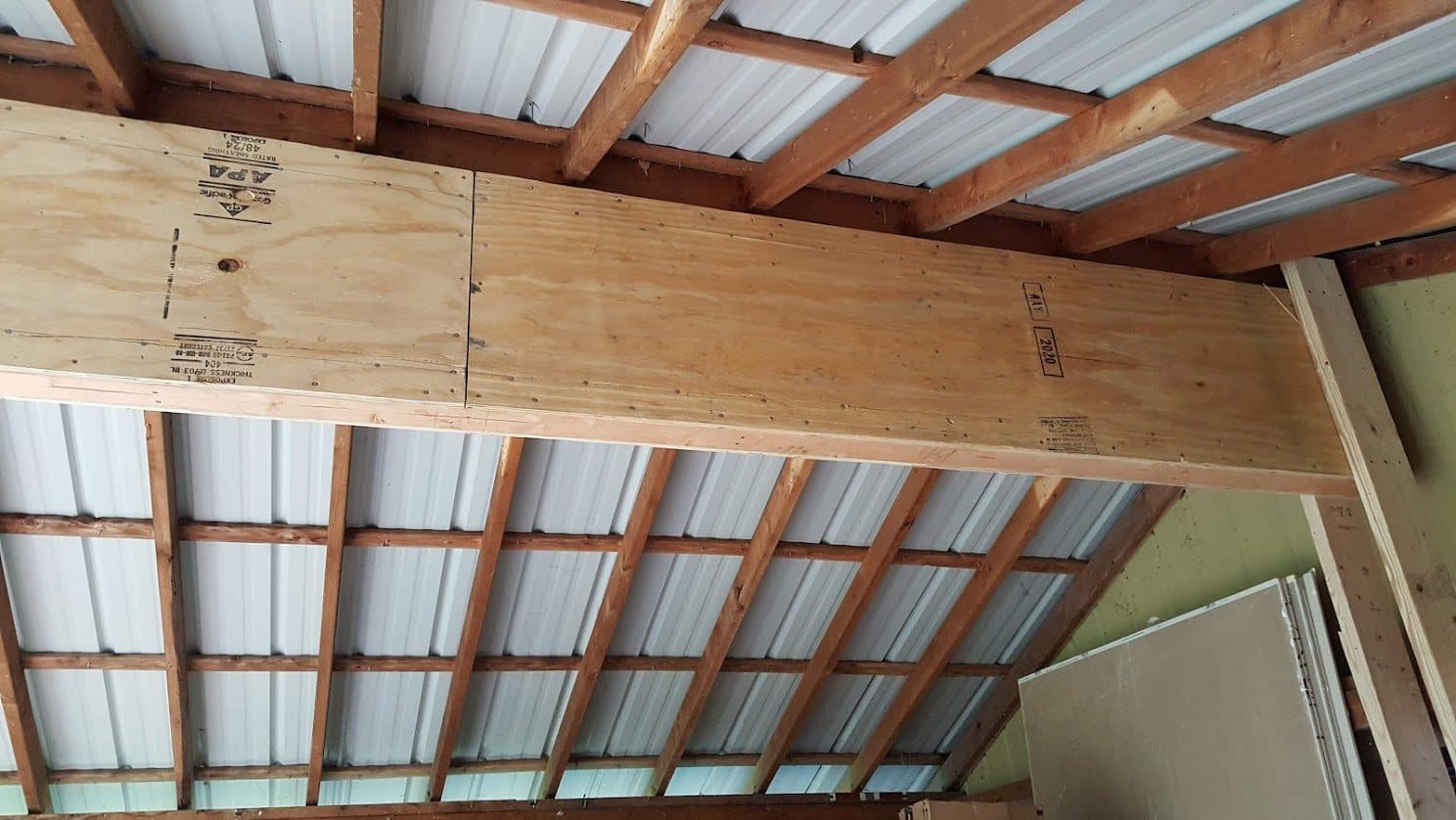

The structural box beam spanning a wide opening, sheathed in rated structural plywoodView original photo ↗
The structural box beam spanning a wide opening, sheathed in rated structural plywood

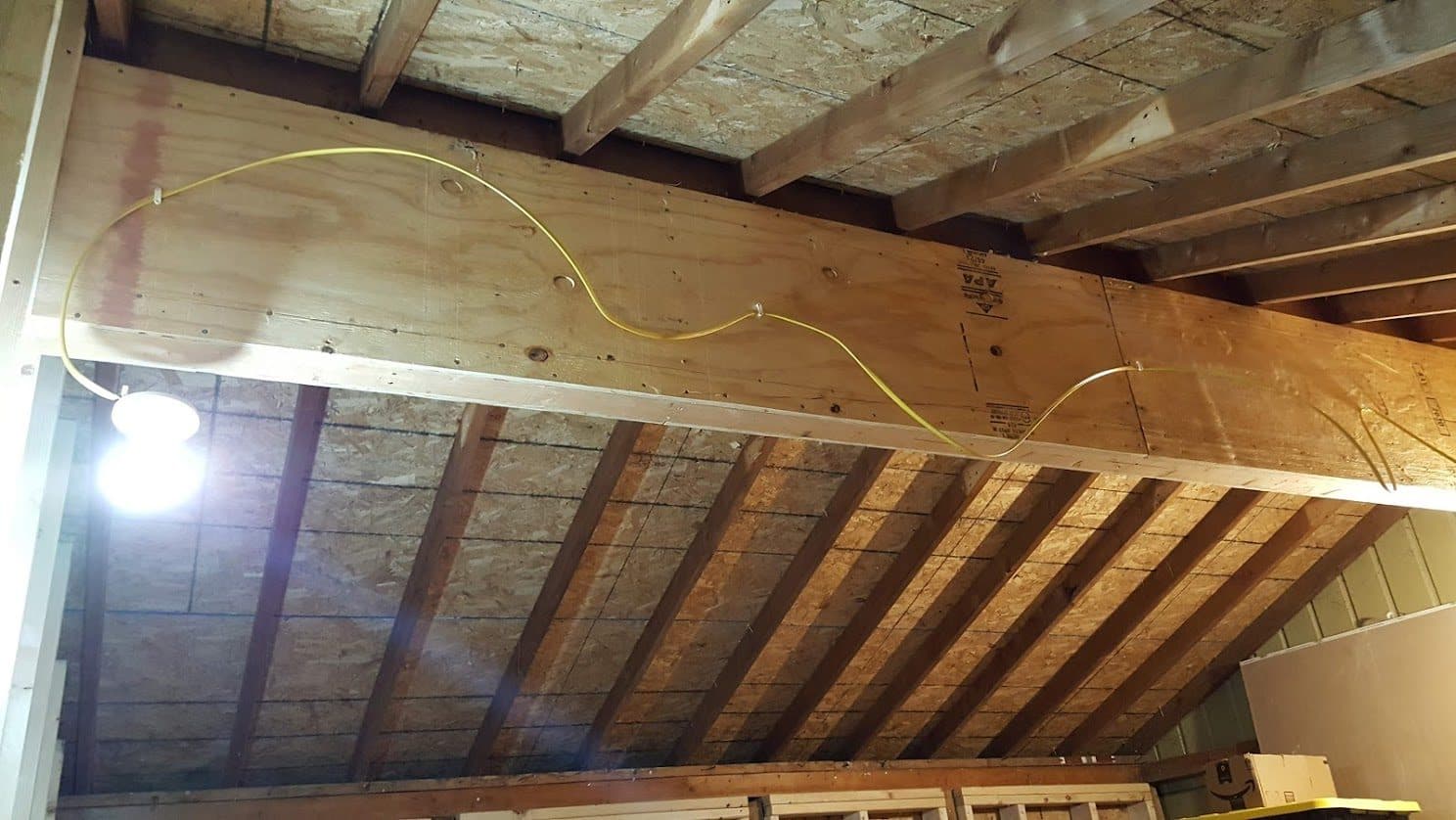

The box beam carrying the roof structure across an interior opening, with framing and decking aboveView original photo ↗
The box beam carrying the roof structure across an interior opening, with framing and decking above

How the job was done

  1. Worked from the engineered, code-approved design — beam depth, plywood layout, and fastening for the span and load.
  2. Fabricated the built-up box beam on site: dimensional lumber framing sheathed in APA-rated structural plywood.
  3. Set and fastened the beam into the opening to carry the roof framing across the wide span.
  4. Had it inspected and signed off as a code-approved structural member.
